V.O.C.
REDUCTION SYSTEMS

TILT CODE WITH SCRUBBER SYSTEM

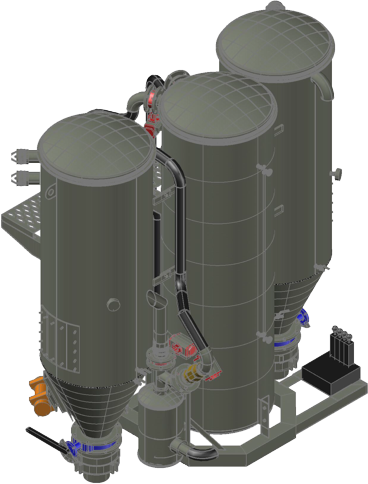

Global Vacuum Systems has designed a scrubber system to help reduce V.O.C.’s (volatile organic compounds) that are being released into the atmosphere. The system is designed of three tanks that can be used in a few combinations.

OPTION ONE:

The exhaust comes out if the vacuum pump and is then directed into tank number one or the center tank which contains liquid surfactant that will initially clean or “scrub” the exhaust. Then the exhaust is sent into tank number two where it is cleaned or scrubbed again through carbon and then released into the atmosphere.

OPTION TWO:

The exhaust comes out of the vacuum pump and is then directed into tank number one or the center tank which contains liquid surfactant that will initially clean or “scrub” the exhaust. Then the Exhaust is sent back into tank number three(or carbon back up tank) where it is cleaned or scrubbed again through carbon and then released into the atmosphere.

OPTION THREE:

The exhaust comes out of the vacuum pump and is then directed into tank number one or the center tank which contains liquid surfactant that will initially clean or “scrub” the exhaust. Then into tank number two cleaned or scrubbed again through carbon then directed into tank number three cleaned or scrubbed again through carbon. All in sequence the released into the atmosphere.

Global Vacuum Systems has also included a V.O.C. check port station for all three tanks. Where you can easily check the V.O.C.’s being released from any of the tanks from the safety of the ground.

Global Vacuum Systems scrubber system has been proven to reduce V.O.C’s. However there are many different factors when determining how they are reduced. Global Vacuum Systems will not guarantee how long that scrubber system will reduce the V.O.C.’s before the carbon becomes spent or the surfactant tank needs to be changed. We only guarantee that our scrubber system has been proven to reduce the V.O.C.’s.
